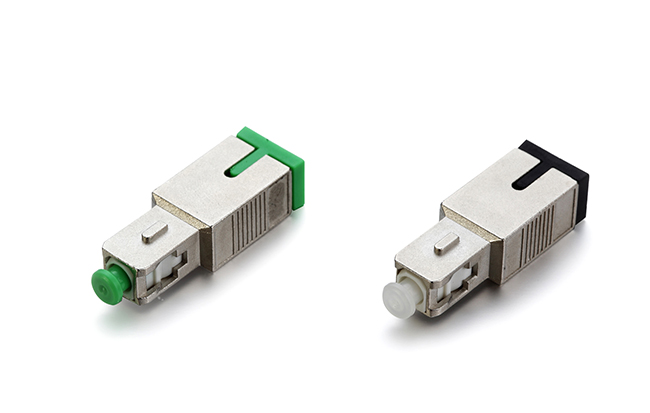

SC Yin-Yang Attenuetor

11181935916


Feature
Comply with Telcordia GR-326-CORE specification
Low insertion loss
Push/Pull coupling provides easy operation
CATV、Telecom、Communication etc.
SPECIFICATION PC UPC APC
Wavelength(nm) 1310nm, 1550nm
Attenuation Value 1dB~25dB
Tolerance ±0.5dB for 1~9 db, ±1dB for 10~25dB
Return Loss(dB) ≧ 50dB ≧55dB ≧60dB
