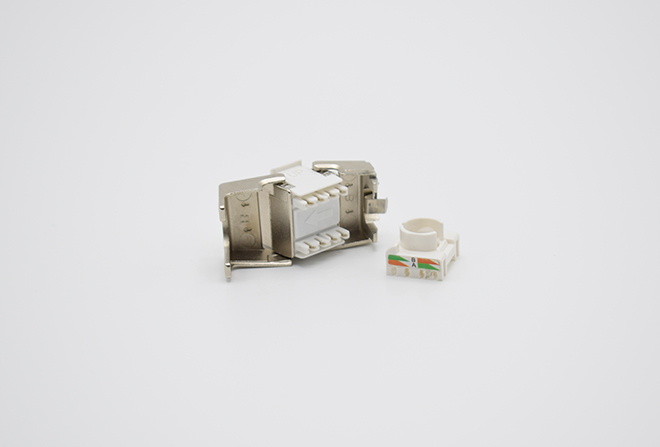

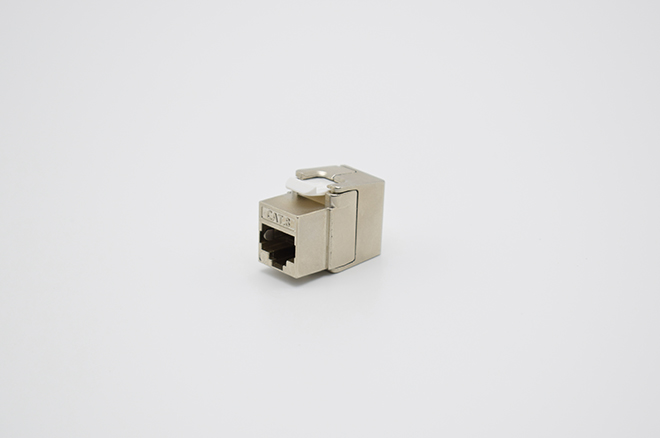

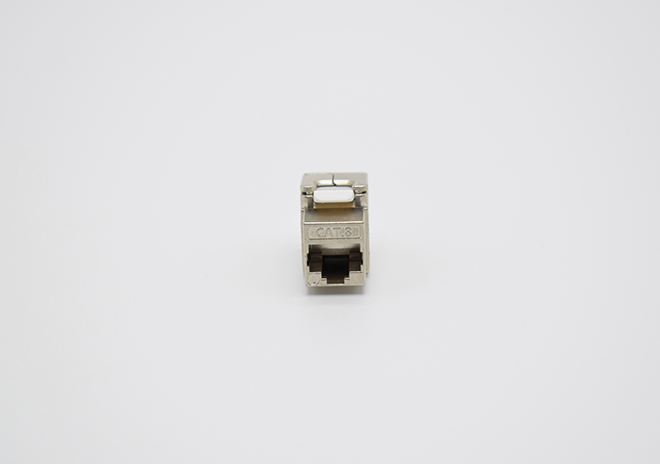

Cat8 Keystone Jack 180°FTP Toolless

NKJ-F8110-060


Cat8 Keystone Jacks 180°FTP Tooless Mini verison(Left to Right) .PDF


Electrical
Current Rating: 1.5 Amps
Insulation Resistance: ≥ 500MΩ
Contact Resistance: ≤20mΩ
DC Resistance: ≤ 0.3Ω
DC/AC Volt Endurance: DC1000V/AC750V 1min

Mechanical
Mating Cycles: 750 cycles minmum
IDC Mating Cycles:200 cycles minimum
Operating Temperature:-10℃-60℃
Operating Humidity:10%-90%RH
Storage Temperature:-40℃-68℃

Physical
Housing:Zinc Die-Casting with high quality nickel plating
Plastic Parts:High quality engineering plastic
PCB:FR-4,1.2mm thickness
Jack Wire:0.35mm phosphor bronze gold over nickel plating
IDC Conductor:0.5mm phosphor bronze,tin-plating
Contact Compatibility:Accommodates 23-26 AWG solid
TIA Cat.8 Perm.Link Test:Worst pair NEXT Headroom≥1.0dB
TIA Cat.8 Channel Test:Worst pair NEXT Headroom≥2.0dB

Standards Verification
ANSI/TIA-568.2-D
ISO/IEC TR 11801-9901 Ed.1.0 (2014-08) Category 8;
ISO/IEC 60603-7-51
