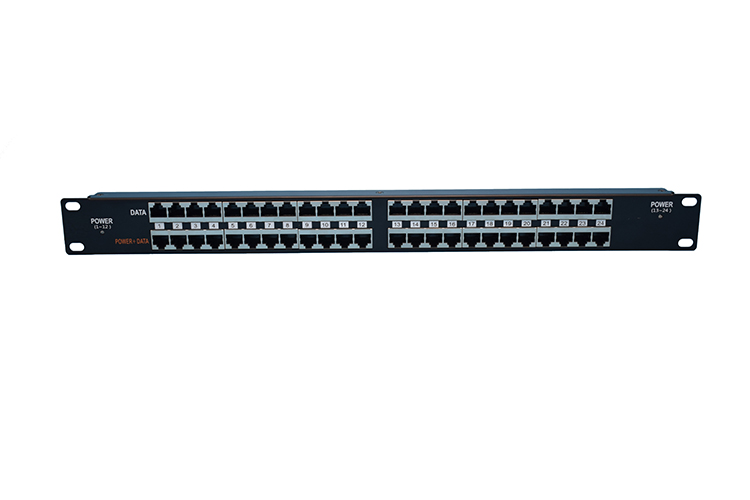

POE patch panel Cat5e 24Port

NPP-U024120-380

• Passive Power over Ethernet Delivered on 24 Ports
• 1U height
• 19" Rack mountable
• Simple Installation
• Cost Effective Power over Ethernet Upgrade for your network
• 100MHZ Compatible


• 24 Port 1U 19" Patch Panel
• 24 port RJ45 Data In
• 24 port RJ45 Data and Power Out
• 120 watts of usable power
• Up to 30 watts per port
• 24 PoE Injector Ports


PANEL FRAME: SPCC POWDER COATING IN BLACK COLOR
Plastic Parts: High impact flame retardant plastic,
 UL 94V-0 rated or UL 94V-2
PCB: FR-4, 1.6mm Thickness
Jack Wire: 0.35 mm Phosphor bronze gold over nickel plating
IDC CONDUCTOR:0.5mm Phosphor bronze, tin-plating
CONTACT COMPATIBILITY :
ACCOMMODATES 26 TO 23AWG SOLID


ANSI/TIA-568-C.2 ;
ISO/IEC 11801 :2002/Amd.2:2010 ;
YD/T 926.3-2009 ;
ISO/IEC 60603-7 COMPLIANT ;
RoHS directive 2002/95/EC compliant
