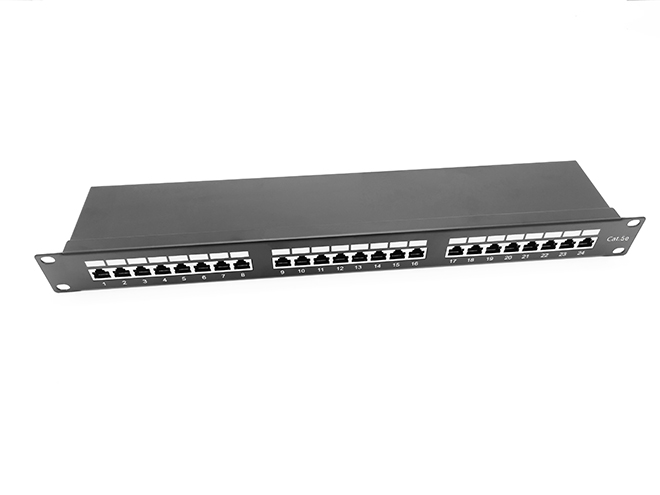

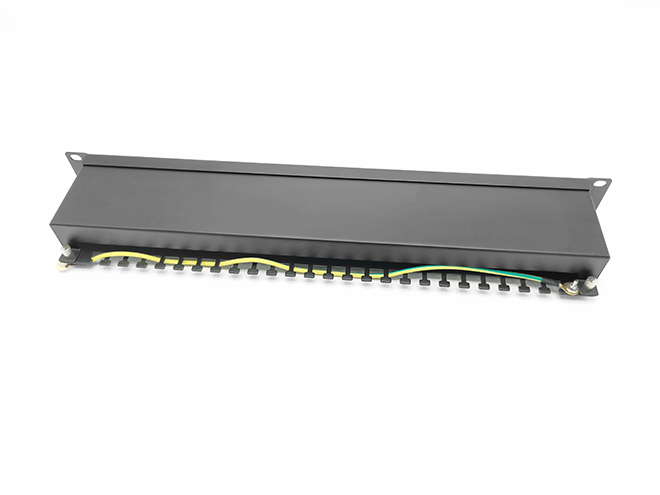

FTP Cat5e 1U 24Port Patch Panel

NPP-F52412W-290


FTP Cat5e 1U 24Port Patch Panel.PDF


Electrical

Current Rating : 1.5Amps
Insulation Resistance : ≥ 500 MΩ
Contact Resistance : ≤20 mΩ
DC Resistance : ≤ 0.3 Ω
DC/AC Volt Endurance :DC1000V/AC750V 1min


Mechanical

Mating Cycles : 750 cycles minimum
IDC Mating Cycles : 200 cycles minimum
Operating Temperature : -10°C~60°C
Operating Humidity : 10%~90%RH
Storage Temperature : -40°C~68°C


Physicals

Panel Frame : SPCC powder coating in black color
Plastic Parts : High quality engineering plastic
PCB : FR-4, 1.6mm Thickness
Jack Wire : 0.45 mm Phosphor bronze gold over nickel plating
IDC Conductor :0.5mm Phosphor bronze, tin-plating
Contact Compatibility : Accommodate 23 to 26 AWG solid
TIA Cat.5e Perm.Link Test : Worst pair NEXT Headroom ≥5.0dB


Standards Verification

ANSI/TIA-568.2-D ;
ISO/IEC TR 11801-9901-2014 ;
ISO/IEC 60603-7-51
