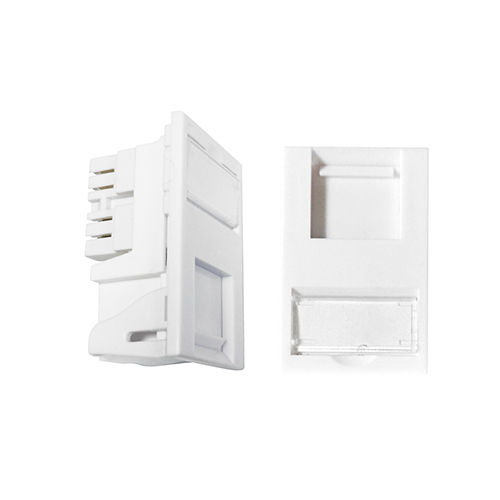

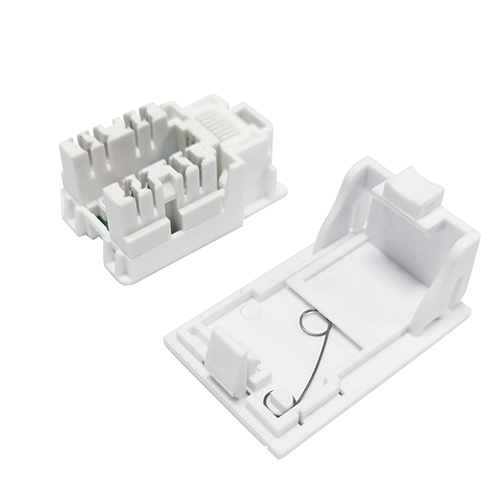

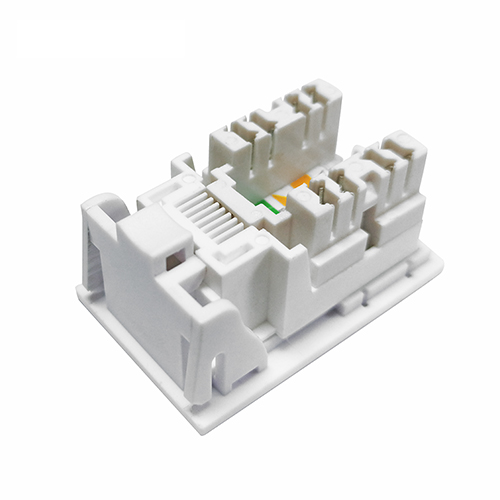

Cat5e 38.6x25mm UK Keystone Module

NKJ-U5110-130


Cat5e 38.6x25mm UK Keystone Module.PDF


Electrical

Current Rating : 1.5Amps
Insulation Resistance : ≥ 500 MΩ
Contact Resistance : ≤ 20 mΩ
DC Resistance : ≤ 0.3 Ω
DC/AC Volt Endurance :DC1000V/AC750V 1min


Mechanical

Mating Cycles : 750 cycles minimum
IDC Mating Cycles : 200 cycles minimum
Operating Temperature : -10°C~60°C
Operating Humidity : 10%~90%RH
Storage Temperature : -40°C~68°C


Physicals

Plastic Parts : High quality engineering plastic
PCB : FR-4, 1.2mm Thickness
Jack Wire : 0.35 mm Phosphor bronze gold(3u"~50u") over nickel plating
IDC Conductor :0.5mm Phosphor bronze, tin-plating
Contact Compatibility : Accommodate 23 to 26 AWG solid
TIA Cat.5e Perm.Link Test : Worst pair NEXT Headroom ≥5.0dB


Standards Verification

ANSI/TIA-568.2-D;
ISO/IEC TR 11801-9901-2014;
YD/T 926.3-2009;
ISO/IEC 60603-7-41
